Mini and compact diaphragm seals are suitable for use for general industry.
The mini and compact diaphragm seals are a one piece construction made from 316L stainless steel.
Models W205-03-SSS, W305-03-SSS and W305-04-SSS are designed to fit into areas where space restrictions are an issue.
Our mini seal has a maximum pressure rating of 14,000kPa and the compact models are rated to 7000kPa.
Additional Info
- Material: 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- Pressure Range: See data sheet
- Instrument Connection: 1/4"NPT-F and 1/2"NPT-F
- Process Connection: 1/2"NPT-F
Download attachments:
Image Gallery

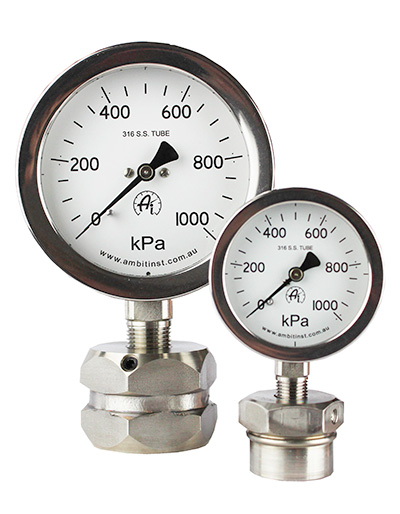

Compact and Mini Seals
