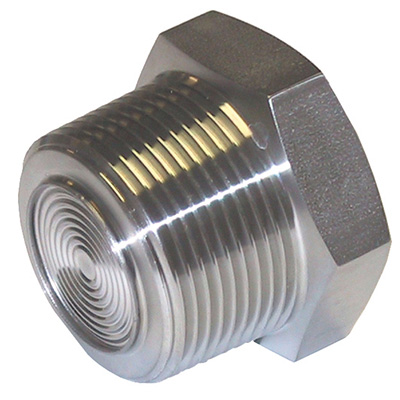

Plug Diaphragm Seal Model ADS-PS2000

Plug Diaphragm seal used to prevent instruments from blocking.

The ADS-PS2000 plug diaphragm seal is a one-piece seal that comes in a variety of sizes and instrument connections which are suitable for most gauges and transmitters.

The body of the plug seal is machined from barstock 316L stainless steel.


Additional Info

  • Material: 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • Pressure Range: See data sheet
  • Instrument Connection: 3/8"BSPP-F and 1/2"NPT-F
  • Process Connection: 1", 1.25", 1.5", 2" BSPT-M
