Flanged Diaphragm seals are suitable for applications where the instrument can become blocked or corroded.

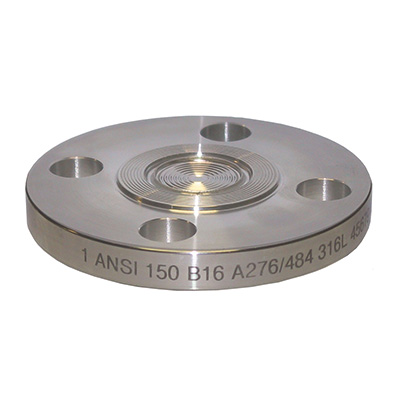

The ADS-F100 flanged diaphragm seal is commonly used across the chemical, petro-chemical, pulp and paper, mining and power industries.
These flanged diaphragm seals are ideal for applications where blocking or damage to the instrument can be caused by corrosion.
The ADS-F100 flanged diaphragm seal is typically used where harsh fluids / chemicals are present.
Additional Info
- Material: 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- Pressure Range: See data sheet
- Instrument Connection: 3/8"BSPP-F or 1/2"BSPP-F
- Process Connection: See data sheet
Download attachments:
Image Gallery

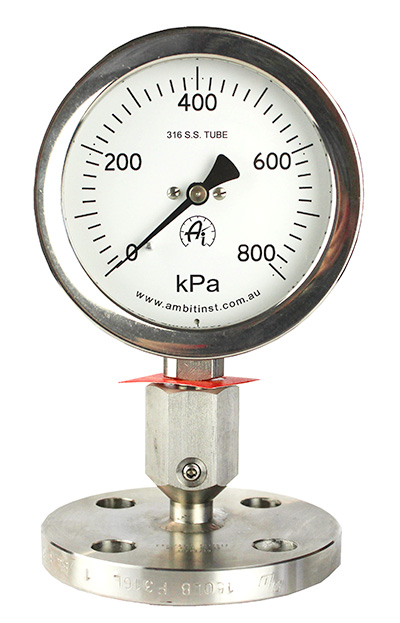

Flanged Seal
